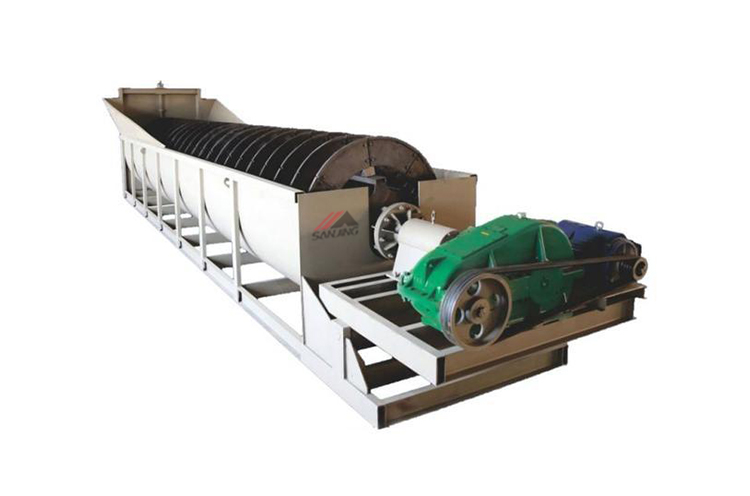

LSX spiral sand washer machine can be used for cleaning and separating the powder dust and soil from construction sand. Novel seal structure and reliable transmission of this sand washing device make sure the cleaning effect.
LSX sand washing machine is usually used with a sand making equipment, and there are two sorts of single spiral type and double spiral type, with features of a high degree of washing, reasonable structure, large capacity, low power consumption, and less loss of sand available.
Especially transmission parts of sand washing machine are water and sand isolated, so the failure rate is much lower than the commonly sand washing machine. So it is the best choice for upgrading washing sand industry.
Product Specification
| Model |
LSX-920 |
2LSX-920 |
LSX-1120 |
2LSX-1120 |
| Number of Screw(Pcs) |
1 |
2 |
1 |
2 |
| Screw Diameter (mm) |
920 |
920 |
1120 |
1120 |
| Tub Length (mm) |
7585 |
7585 |
9750 |
9750 |
| Feeding Size (mm) |
≤10 |
≤10 |
≤10 |
≤10 |
| Capacity (t/h) |
100 |
200 |
175 |
350 |
| Screw Speed (r/min) |
21 |
21 |
17 |
17 |
| Required Power (KW) |
11 |
11×2 |
18.5 |
18.5×2 |
| Water Requirement (t/h) |
10-80 |
20-160 |
20-150 |
40-300 |
| Weight (t) |
6.2 |
11.5 |
10.9 |
17.8 |
